Microsoft SQL Server introduced parallel query processing capability
in version 7.0. The purpose of parallel query execution is to complete
a query involving a large amount of data more quickly than possible
with a single thread on computers with more than one processor.
Books Online and various Microsoft documents describe the principles
of parallel execution and the use of configuration setting that
affect parallel execution. However, there is very little explanation
on the matter of interpreting execution plans when parallelism is
involved. A comparison of several queries with parallel execution
plans, to the execution plan with parallelism disabled, provide
a means of explaining some of the characteristics of parallel execution
plans, including the meaning the of the estimated cost. An examination
of actual queries within and without parallel execution plans provides
additional guidance on circumstances where parallel execution is
beneficial and when it should be disabled. |
Parallel
Query Processing
Figure 1 below shows a portion of the execution plans for a query
with and without parallel operations. The query is a simple SELECT
with a WHERE clause search argument (SARG), aggregates in the SELECT
list, and a GROUP BY clause. The non-parallel execution plan is
forced with the OPTION (MAXDOP 1) clause.
Figure 1. Non-parallel and parallel portions of an execution
plan.
Note that the symbols for the common SQL operations--such as Index
Seek, Hash Match, and Compute Scalar--have a yellow circle with
arrows in the lower right corner when parallel execution is involved
for that step. The Parallelism/Gather Streams symbol in Figure 1
is specific to parallel plans. Other symbols specific to parallel
plans include Parallelism/Broadcast, Parallelism/Distribute Streams,
and Parallelism Repartition Streams.
Figure 2 below shows the left side portion of the two execution
plans from Figure 1. The top query with cost 66.65% relative to
the batch (Query 1 and Query 2) is the non-parallel execution plan
and the bottom query with cost 33.35% is the parallel execution
plan.
Figure 2. Non-parallel (top) and parallel (bottom) execution
plan relative cost.
Figure 3 below show the detail boxes for the SELECT symbols on the
non-parallel (left) and parallel (right) execution plans. The non-parallel
plan has a total estimated cost of 121 and the parallel plan has
a total estimated cost of 60.7, from which the 66.65% and 33.35%
relative costs in Figure 2 are derived.
Figure 3. Non-parallel (left) and parallel (right) plan cost
detail.
Nowhere in the public Microsoft documentation for SQL Server is
the unit of measure for the execution plan cost explained. In fact,
all Microsoft SQL Server documentation on this subject seems to
be deliberately vague. Is the execution plan cost some measure of
time or processor utilization? If it were processor utilization,
is it relative to one processor or all processors? An examination
of non-parallel and parallel execution plans provide a hint that
the unit of measure is most probably time, and that lower plan costs
represents lower execution time, but makes no representation of
CPU resources.
Figure 4 below shows the cost details for the two major components
of each execution plan discussed above. Figure 4a is the non-parallel
Clustered Index Seek and Figure 4b is the parallel plan Clustered
Index Seek operation. In both cases the estimated row counts are
identical, yet the parallel plan Clustered Index Seek has a cost
of 47.1095, approximately one-half the cost of the non-parallel
Clustered Index Seek at 94.2190.

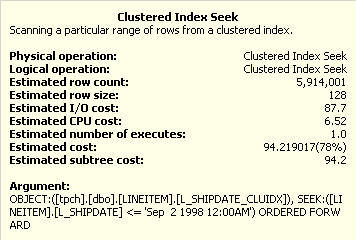

Figure 4a. Non-parallel Clustered Index Seek cost details.
Figure 4b. Parallel Clustered Index Seek cost details.
The same pattern is observed in the non-parallel and parallel Hash
Match/Aggregate component operations shown in Figure 4c and Figure
4d.

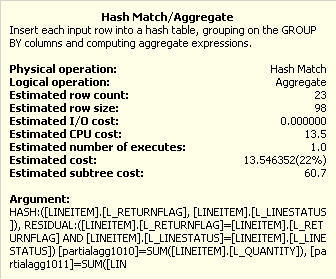

Figure 4c. Non-parallel Hash Match/Aggregate cost details.
Figure 4c. Non-parallel Hash Match/Aggregate cost details.
There is no rational reason to believe that having two or more threads
separately process portions of the index seek or hash match operations
reduces the total CPU-cycles in processing the entire operation,
except under unusual circumstances. In fact, the parallel operation
should be more expensive taking into account the cost of merging
the partial results from each thread. It is reasonable, however,
to expect the parallel operation to complete faster than the non-parallel
operation, assuming all required resources are available. The logical
conclusion is that the unit of measure for the cost in SQL Server’s
execution plan is probably time and not processor utilization.
